    Fragment Title Positioning in Swift

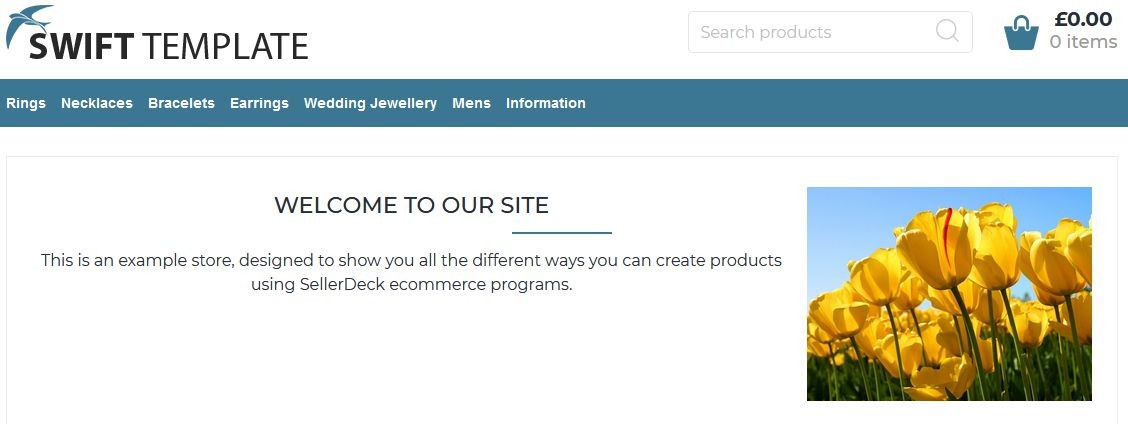

    In Swift the fragment title is displaced to the left if a right fragment image is used, although its underline remains centrally aligned.

    Click image for larger version

Name:	fragment-title-off.jpg
Views:	23
Size:	71.8 KB
ID:	554857

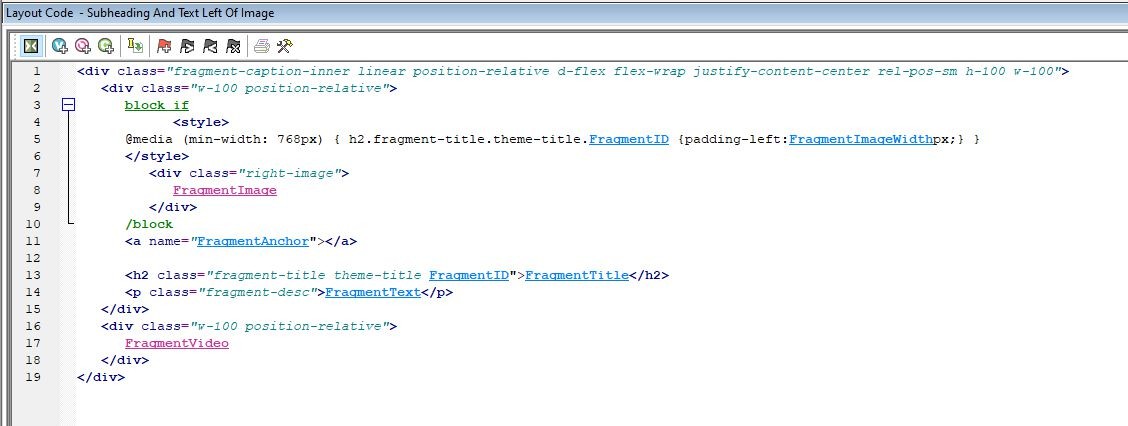

    The solution is to add a style to the Fragment Title like this:

    Code:
    <actinic:block if="%3cactinic%3avariable%20name%3d%22FragmentImageFileName%22%20%2f%3e%20%21%3d%20%22%22" >
    <style>
    @media (min-width: 768px) { h2.fragment-title.theme-title.<actinic:variable name="FragmentID" /> {padding-left:<actinic:block if="%3cactinic%3avariable%20name%3d%22FragmentImageWidth%22%20%2f%3e%20%3c%3d%20300"><actinic:variable name="FragmentImageWidth" />px</actinic:block><actinic:block if="%3cactinic%3avariable%20name%3d%22FragmentImageWidth%22%20%2f%3e%20%3e%20300" >300px</actinic:block>;} }
    </style>
    <div class="right-image">
    <actinic:variable formatting="div,style|set-right" name="FragmentImage" />
    </div>
    </actinic:block>
    <a name="<actinic:variable name="FragmentAnchor" />"></a>

    <h2 class="fragment-title theme-title <actinic:variable name="FragmentID" />"><actinic:variable name="FragmentTitle" /></h2>

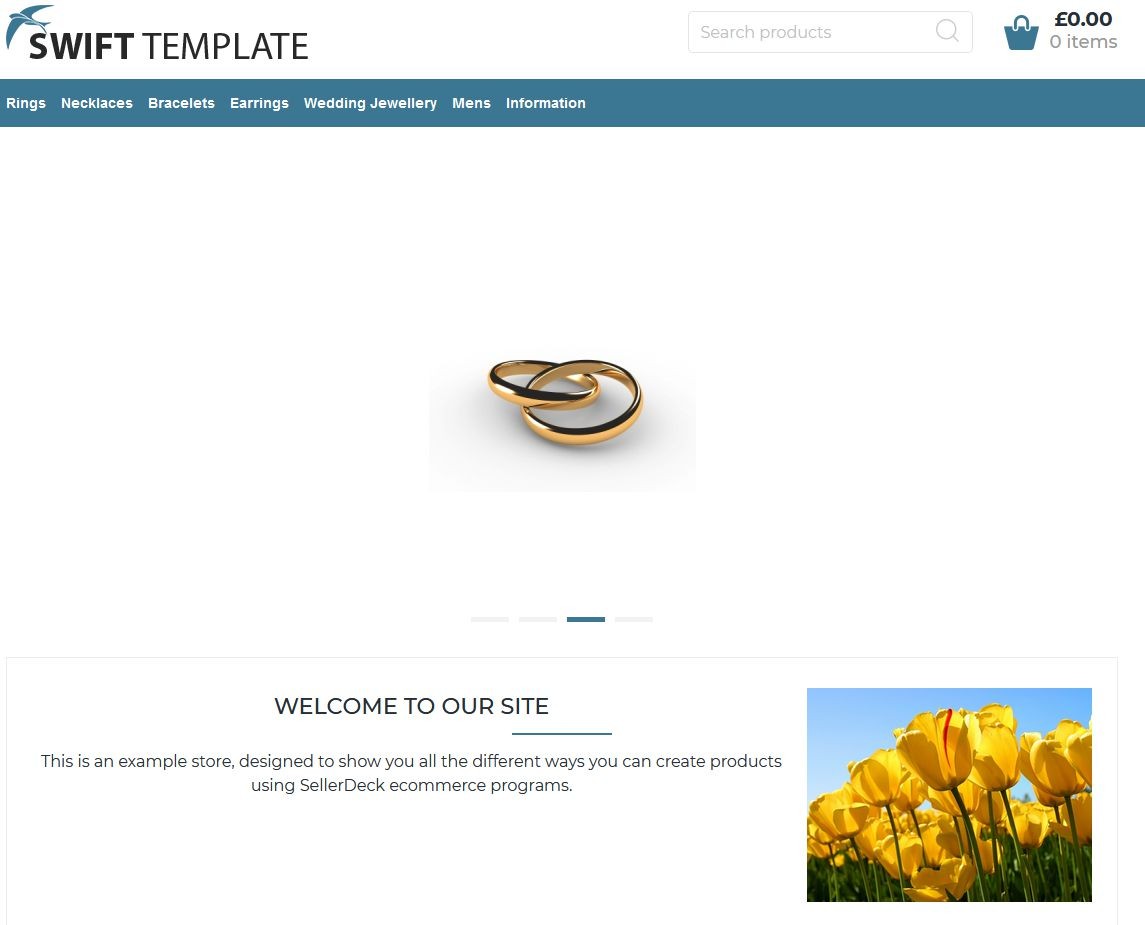

    In the example above I have a fixed maximum width for fragment images set in the stylesheet, if you do not you can edit that bit out.

    Click image for larger version

Name:	fragment-title-off-layout.jpg
Views:	23
Size:	78.6 KB
ID:	554858

    Thank you.
