How to configure the Toshiba ST-B10 to work with SellerDeck EPOS

[G.W.Green]

Please see below instructions to configure the Toshiba ST-B10 to work with SellerDeck EPOS.

If you find that the printer, pole display or cash drawer stop working on the Toshiba ST-B10 for any reason, these instructions will show you how to configure the Toshiba ST-B10 from the beginning and solve the problem.

To Configure the Customer Display, Printer and Cash Drawer

1. Go to Start | Control Panel | Add/remove programs.
2. Click on "ST-B10 OPOS", then click "remove", then select "yes" to unistall the program.






3. Restart you PC (Start | Shut down | Restart)
4. Now you need to reinstall the drivers.

   Double click on "My Computer", then browse to the following location:

   C:\Drivers\POSDRV\OPOS

5. Double click on "ST-B10_OPOS_Installer_V001.902.exe"
6. Select "Next"

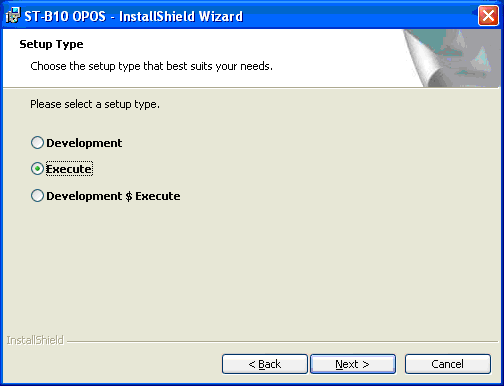

7. Select "Execute" and click "Next".






8. Click "Next", then "Install", then finally "Finish".
9. Go to Start | Settings | Control Panel | Tec POS Drivers.






10. Click on little "+" sign next to "OPOS Control".
11. Click on little plus sign next to "LineDisplay"

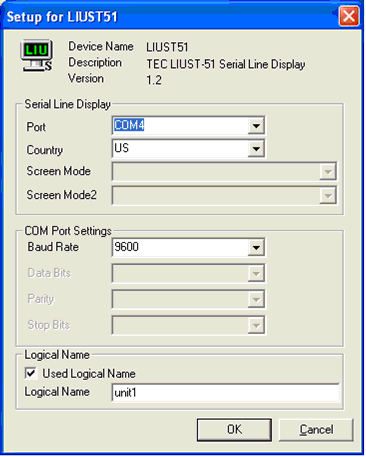

12. Double Click on "LIUST51"
13. In this window, select the follow options:

    Port = Com 4
    Country = US
    Baud Rate = 9600
    Tick the tick box "Used Logical Name" and type "unit1" as the Logical Name.






14. Click "OK",
15. Click on little plus sign next to "CashDrawer"

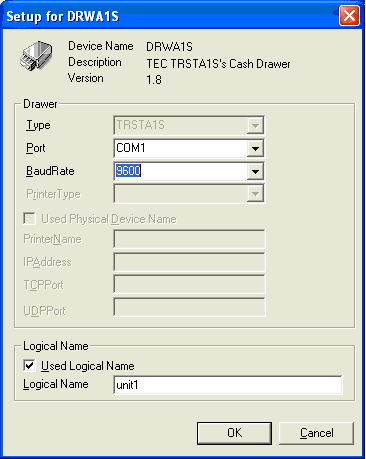

16. Double Click on "DRWA1S"






17. In this window, select the follow options:

    Port = Com 1
    Baud Rate = 9600
    Tick the tick box "Used Logical Name" and type "unit1" as the Logical Name.






18. Click "OK",
19. Click on little plus sign next to "POSPrinter"

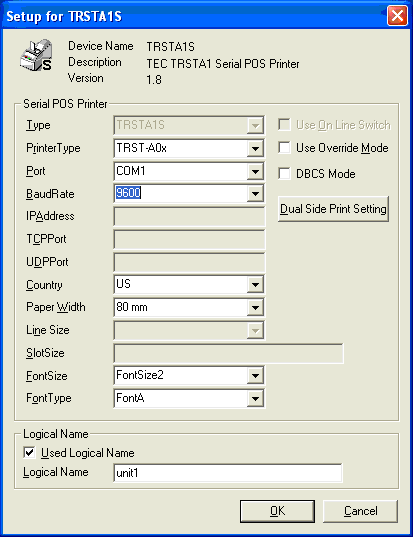

20. Double Click on "TRSTA1S"






21. In this window, select the follow options:

    Printer Type = TRST-A0x
    Port = Com 1
    Baud Rate = 9600
    Country = US
    Paper Width = 80mm
    Font Size = FontSize2
    Font Type = FontA
    Tick the tick box "Used Logical Name" and type "unit1" as the Logical Name.






22. Click OK, then "OK" to close the program.
23. In SellerDeck EPOS, go to Setup | This till | "Printing" tab, and make sure the tick boxes "Epson OPOS avalible" and "Customer Display Active" is ticked and a message has been entered in "Customer Display Message".
24. The customer display, printer and cash drawer are now fully configured. To test it, open SellerDeck EPOS, go to “Setup” | and tick the “Training mode” tick box. You can now put a sale through to test the hardware.

Remember to turn off training mode when you have finished testing the hardware
